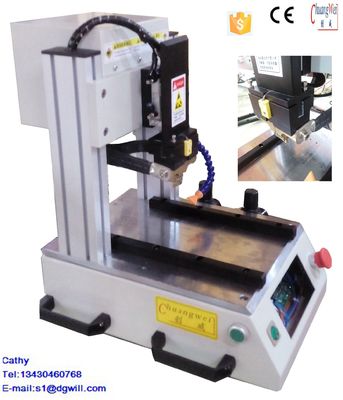

Fpc Pcb Soldering Machine Heat Bonding Machine 590*640*620mm
| MOQ: | 1 set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywood case |
| Delivery Period: | 3-5 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 1000 sets per year |
pcb welding machine
,pcb board soldering machine
Hot Sale Soldering Machine / Fpc Soldering Machine / Pcb Soldering Machine
Features :
1 . Closed Loop PID temperature control with visible LED display
2 . LCD display programmable pressure switch for precise force control
3 . Each heating cycle is triggered by a real time pressure sensor
4 . Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5 . Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6 . Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7 . Parts registration is adjusted by micrometer and secured by vacuum
lock
8 . Optional CCD system for fine pitch component
Sepcification of selective soldering machine :
| Max. Working Area | 200mm X 260mm |
| working air pressure | 0.45-0.7Mpa |
| Temperature setting | 20-500°C |
| Temperature precision | ±2°C |
| hot-pressing time | 1-99 s |
| pressure Precision | ±0.05 MPa |
| Soldering Machine Size | 620mm X 690mm X 570mm |
| momentary welding Power/ voltage | 2000W / 110V/220V |
Soldering Machine detailed information:
