Automatic FPC Soldering Machine Fast Speed Use For LCD Repair
| MOQ: | 1 set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 1000 sets per year |
pcb welding machine
,pcb board soldering machine

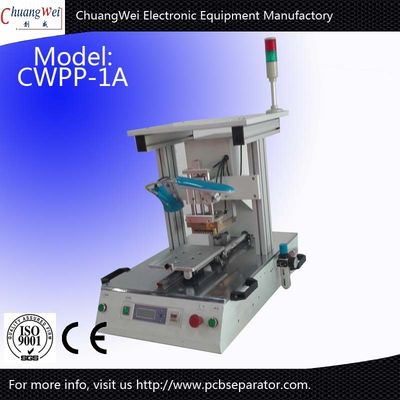

Automatic FPC Soldering Machine Use For LCD Repair With Fast Speed
Technical parameters
| Model | CWPP-1A |
| Machine Size | 620mm X 690mm X 570mm |
| Work Area | 200mm X 260mm |
| Air pressing | 0.45-0.70Mpa |
| Machine Weight | 90KG |
|
Temperature setting
|
20-500 C |
|
Bonding time
|
1-99s |
|
Temperature precision
|
+-2 |
|
bonding force
|
0.1-0.6Pa |
|
Precision
|
0.05 Pa |
| Fixture | 1 set |
Features :
Pulse Heated Soldering Machine with Linear Guideway( CWPP-1A)
1 . Unique pulse heat technology provides fastest soldering head heating.
2 . Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3 . Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4 . Closed Loop PID temperature control with clearly visible LED display.
5 . Soldering time can be programmable and is triggered by temperature.
6 . Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7 . Programmable pressure switch with LCD display for precise force control.
8 . CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.
Detailed Pictures :
