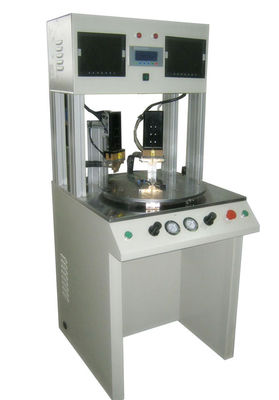

Hot Bar Soldering Equipment Pulse Heated PCB Soldering

Hot Bar Soldering Equipment Pulse Heated PCB Soldering

MOQ: 1 Set
Price: USD 2000-9999
Standard Packaging: plywood case (fumigation can offer according to customer)
Delivery Period: 3-5 days after payment confirm
Payment Method: T/T L/C D/P Western Union
Supply Capacity: 300 sets/month
Detail Information
Place of Origin
Dongguang china
Brand Name
Chuangwei
Certification
CE ISO9001
Model Number
CWPP-2
Type:
Pulse Heating
Air Pressing (MPa):
0.45~0.7
Welding Equipment Type:
TAB TCP ACA ACF FPC PCB Soldering
Working Area:
200mm X 260mm (can Be Customize)
Cooling Way:
Air Cooling
Warning Light:
Ensure Operate Correctly
Highlight:

Hot Bar Soldering Equipment

,

pcb soldering machine

Product Description

Hot Bar Soldering Equipment Pulse Heated PCB Soldering Feature

1. According to different products, heating speed can be adjustable

2. Special material welding head, ensure that the product compression on average
3. Equipped with vacuum function, regulate the registration easier
4. Temperature numerical control precision
5. Equipped with digital pressure gauge, can preset pressure range
6. The microcomputer control, precision and stability
7. Programmable curve including preheat and reflow soldering temperature
8. Suitable for all kinds of high density TAB, TCP and FPC, FFC and pressure to PCB solder pressure welding
9. Adopts accurate PID control
10phase Angle instead of the pulse drive Small vibration, low noise and voltage fluctuation
11. Use molybdenum alloy instead of traditional titanium alloy welding head, cooling fast temperature rise, heat transfer coefficient is good, wear-resisting
12. Double four workstation design, high efficie

Machine specifications:

1. machine size: 620 * 720 * 1500 mm
2. Job dimensions: Max120x120mm
3.Machine weight: 110 kg
4.Working pressure: 0.6-0.8 Mpa
5.Power supply: AC220V plus or minus 10%, 50 hz, 2300 w
6.Temperature setting: two Working environment: 10 to 60 ℃, 40% - 95%
7.Welding stress: 1 ~ 20 kg
8.Temperature Settings: RT error + / - 5 ℃ ~ 500 ℃
9.Hot pressing time: 1 ~ 99.9 s
10.Hot-pressing precision: pitch0.2 mm
11.Hot pressing head size: MAX 60 x5mmHot Bar Soldering Equipment Pulse Heated PCB Soldering 0


Our Advantage :

1. Promise day technical support services
2. Limit the handling of complaints, half an hour back to customers
3. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying

Our production

Hot Bar Soldering Equipment Pulse Heated PCB Soldering 1

Why us



1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2. Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.



3. Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4. One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine



CE Approval

Hot Bar Soldering Equipment Pulse Heated PCB Soldering 2
  Some cooperative partners

Hot Bar Soldering Equipment Pulse Heated PCB Soldering 3
