Durable Thermode Welding Hot Bar Soldering Machine For SMT
| MOQ: | 1 set |
| Price: | USD 2000-9999 |
| Standard Packaging: | each set be packed in plywood case |
| Delivery Period: | 1-3 days after payment confirm |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
pcb welding machine
,pcb soldering machine

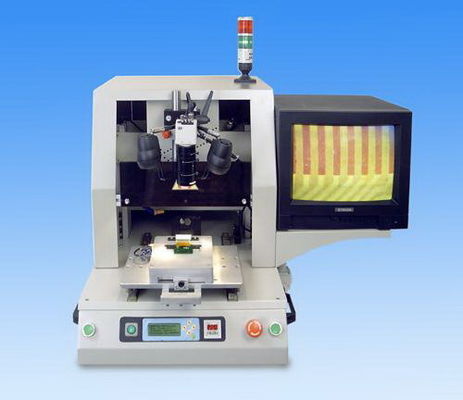

Durable Thermode Welding Hot Bar Soldering Machine For SMT
Technical parameters
|
Model |
CWPC-1A |
|
Working area (mm) |
200*260 |
|
Air pressing (MPa) |
0.45~0.7 |
|
Size (MM) |
620*690*570 |
|
Weight (Kg) |
95 |
|
Guarantee |
1 Year |
|
Delivery |
1 Day |
|
Min. Order |
1 Set |
|
Ability |
1000 Sets |
Feature:
1. Extremely short cycle time with rotary table design. Product loading and unloading can be done during the heat sealing process
2. High quality heat seal application up to 0.25mm pitch
3. Pneumatic bonding head provide up to 3,900N force
4. Digital programmable pressure control with LCD display
5. Closed loop PID temperature control with visible LED display
6. Bonding cycle is triggered by a real time pressure sensor
7. Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
8. Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components
9. Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
10. Full microprocessor logic control
Production flow
Best service
|
1. Engineers available to service machinery oversea. Engineers are available to be sent to freign countries to do machinery training and offer technical support
|
|
2. Mature technique & forerunner to process makes high quality machinery. As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router Our R&D team continuously upgrade the existing machines to meet the market development trend.
|
|
3. One year warranty for the machines except accessories. Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
|
|
4. Effective customer service. All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
|
|
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
|
Our Vision: Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
CE approval
