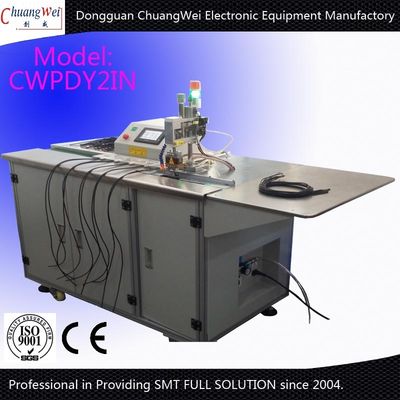

Hot Bar Soldering Machine Double Sides Welding Simultaneously
| MOQ: | 1 |
| Price: | USD 2000-9999 |
| Standard Packaging: | each set be packed in plywood case |
| Delivery Period: | 1-3 days after payment receive |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 per month |
Detail Information
Place of Origin
Dongguang
Brand Name
Chuangwei
Certification
CE ISO
Model Number
CWPDY2IN
Power Supply::
220V 50Hz
Inverter Frequency::
4*2 KHz
Load Sustained Rate::
20%
Heating Up And Cooling Down::
Yes
Temp. Range::
50-600℃
Cooling Mode::
Air
Highlight:
pcb welding machine
,Simultaneously pcb board soldering machine
Product Description
Hot Bar Soldering Machine Double Sides Welding Simultaneously
Technical Parameters
| Model:CWPDY2IN | Power:6*2 KW |
| Power Supply:220V 50Hz | Inverter frequency: 4*2 KHz |
| Load sustained rate: 20% | Heating up and cooling down: Yes |
| Temp. range: 50-600℃ | Cooling mode: Air |
| Max product size:80mm | Pressure range:10-50N |
| Temp. Control Precision:±3% | Thermocouple: E or K optional |
| Thermode head size: 5-50mm | Weight:200kgs |
| Dimension:1600*700*1300mm |
Features:
1. On-line conveyor loading and landing automatically
2. Has alarm system, manual test & adjustment is available
3. Double side soldering at the same time
4. LCD display for soldering temp.
5. Advanced temp. controlling system, high precision temp & soldering
time controlling
6. Stable temp. profit, high frequency inverter frequency, short power
cycle.
7. Closed loop PID temperature control with visible LED display
8. Three section of heating setting, the temperature rises quickly and
steadily
9. 20 groups of programs can be stored, using RRPROM to prevent data
from missing
