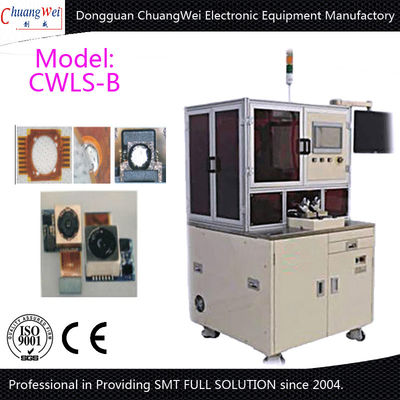

PLC Action Quickly Laser Tin Ball Spraying Soldering Machine 1075mm Length
| MOQ: | 1Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywood case |
| Delivery Period: | 10days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 30sets |
pcb welding machine
,pcb soldering machine
PLC Action and PC Picture Processing Optional Quickly Laser Tin-Ball Spraying Soldering Machine
Product Parameter :
| Feeding Way |
Carry in or out track or on-line type or jig, single or double station |
|
Laser Parameter Power
|
Optional 50-200w |
|
Wave Length
|
1070±5mm |
|
Pattern
|
Constant or Pulse |
|
Solder Ball Size
|
Ø0.25MM |
|
Controlling Way
|
PLC Action and PC Picture Processing |
|
Repeated Precision
|
±0.003mm |
|
Vision Positioning System
|
CCD 5Million pixels |
|
Resolution Rate
|
±5um |
|
Shape Size
|
1250*950*1650mm |
|
Load Plate Size
|
<110*130mm |
|
Main Engine Weight
|
550KG |
|
Power Dissipation
|
3KW |
|
Power Supply
|
Single Phase AC220V,15A |
|
Compressed Air
|
0.6mpa |
Application
Applied tin-balls spraying soldering, very high soldering accuracy, can effectively ensures the soldering precision especially for the areas sensitive temperature
microelectronics : aviation, military electronics industry, sensor industry
other industries : optical electronic industry, MEMS, sensor industry, BGA, HDD
 |
|
| HDD:the Width of Welding disc is 0.08mm and the Min distance is 0.1mm | OIS Suspension Loop Welding |
| |
|
| OIS base -FPC reed soldering |
VCM Module(Angle Soldering)
|
Product Features
1.apply to solder with high-precision for -10um or +10um, the smallest interval of the product is 100um
2.Optional to a bigger range of the solder ball, the diameter is 0.25mm
3.apply to the metal surface with tin, gold and silver. More than 99% soldered product is good.
Technical Advantages
1.quickly done the process of heating and melting within 0.2s
2.melting the solder ball in the soldering place without splash
3.No flux is required, no pollution, long life time of electronics
4.The smallest diameter of the solder ball is 0.1mm, the machine meets the developing trend of integration and precision.
5. According to different size of the solder ball, the operator can solder different soldering points.
6.The quality of the soldered product is good
meet the need of massive production in assembly line with the cooperation of CCD positioning system.
Product Description
Laser tin-ball soldering ball is laser through fiber transmission, the output port is attached to the top of tin-ball, to provide the inlet for high-pressure gas entrance in the annular cavity, to molten solder ball, then high pressure inert gas can ensure there is enough pressure to molten solder ball dripping, guarantee the tin ball will not be oxidation, high precision, good welding effect.
Multi-axis intelligent working platform, equipped with coaxial CCD positioning and monitoring system, effectively ensures soldering accuracy and yield rate.
