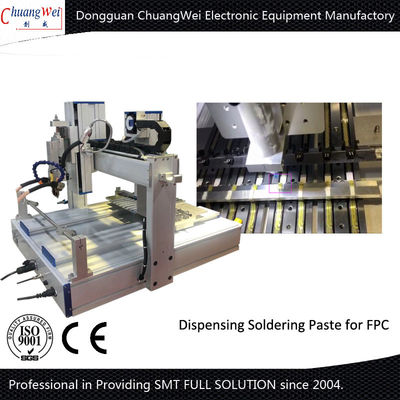

Energy Saving Hot Bar Soldering Machine with Dispenser Customized
| MOQ: | 1Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | wooden case |
| Delivery Period: | 15-30 working days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 100Set/Month |
pcb welding machine
,bonding machine
Solder Machine with Dispenser Machine Customized with Customers Requirments Maintenance
1. The welding head is cleaned regularly every day.
2. Do not set the temperature higher to prevent soldering products
3. The welding head has a high working temperature for a long time, pay attention to prevent burns.
4. X, Y, Z guide rails regularly add butter every quarter
5. When the machine is abnormal, press the emergency stop switch until the abnormality is removed before starting the work normally.
Solder Machine with Dispenser Machine Customized with Customers Requirments Parameter:
| Item | Parameter |
| Working area(mm) | 300*300 |
| Working pressure(Mpa) | 0.4-0.7 |
| Fixture/Die(PCS) | 1 |
| Machine size(mm) | 820*900*700mm |
| Weight(Kg) | 140Kg |
| Max soldering area | 6*160 |
| Heating method | Pulse |
| Temp Setting(℃) | 0-500 |
| Temp error(℃) | ±2 |
| Soldering time(s) | 1-99 |
| Heating power(KW) | 3 |
| Soldering accuracy(mm) | ±0.02 |
| Heating setting | 2 line |
| Heating speed(℃/s) | 200 |
Solder Machine with Dispenser Machine Customized with Customers Requirments Package:
Solder Machine with Dispenser Machine Customized with Customers Requirments Feature:
Applicable to different products, adjustable heating rate;
Titanium alloy indenter ensures average temperature, fast heating rate and long service life;
The indenter is horizontally adjustable to ensure that the components are flattened;
Imported temperature controller, precise and stable;
Small size, using front and rear double station mode to improve work efficiency;
Servo motor drive replaces traditional cylinder structure with high precision and better stability.
