Automated Dispensing Machines Adhesive Robot Dispensing Machine
| MOQ: | 1 set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywood case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 1200 sets / year |
Detail Information
Place of Origin
China
Brand Name
Chuangwei glue dispensing machine
Certification
CE
Model Number
CWDJ
Working Relative Humidity:
20~90% No Condensation
Repetitive Positioning Accurracy:
+/-0.01mm/Axis
Warranty:
Free For One Year
Working Area:
300/300/100(mm)
Dimensions(W*D*Hmm:
485*505*610 ( Mm )
Name:
Glue Dispensing Machine
Highlight:
Auto Dispensing Machine
,pcb dispenser
Product Description

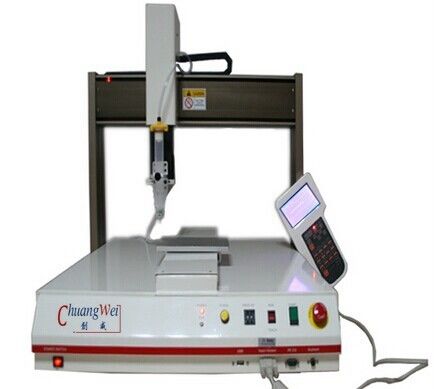

Automated Dispensing Machines Adhesive Robot Dispensing Machine
Our business partners :
Features for gllue dispensing machine :
1 , Function : Drawing point , line , surface , arc , circle , irregular curve continuous complement and triaxial linkage .
2 , The software has the area display , translation rotating operation functions .
3 , Can set glue size , glue speed , dispensing time , stopping glue time . Stable glue
exudation without glue leaking and dripping .
4 , According to the production process , work platform can be installed with positioning PIN ,
Specification for glue dispensing machine :
| Model | CWDJ-220D | CWDJ-330D | CWDJ-440D | CWDJ-550D |
| Work area (X/Y/Z)mm | 200*200*50 | 300*300*100 | 400*400*100 | 500*500*150 |
| Max. speed(mm/see) | 0.1~500/350 | 0.1~800/500 | 0.1~800/500 | 0.1~800/500 |
| Dimensions(W*D*H mm) | 385*380*500 | 485*505*610 | 585*610*610 | 685*700*660 |
| Resolution | 0.01mm/Axis | |||
| Repeatability | +/-0.01mm/Axis | |||
| Operation interface | LCD touch panel/Handhold control box | |||
| Drive mode | Micro stepping motor/belt | |||
| Power | AC220V 50-60HZ 0.8KW | |||
| Net weight | 23kg | 34kg | 41kg | 52kg |
| Operation environment | Humidity:20-90% RH, Temperature:0-40°C | |||
| Date storage type | CF Card | |||
