Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywood case |
| Delivery Period: | 10 days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 100 sets/month |
Safe Smt Pallet Washer Machines
,Electric Pneumatic Control Cleaning Machine
,Safe Pneumatic Control Cleaning Machine
SMT Cleaning Equipment Pallet Pneumatic Control Cleaning Machine 100 Safe
Machine description:

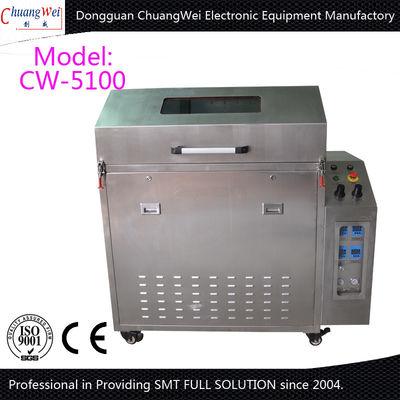

CW-5100 cleaner is used to clean Grease, Flux, Rosin on reflow oven cooler and filer, jig, tray. It is also used to clean parts of hardware, print and mechanics industries.
Machine Feature:
1. Pneumatic control, no electric power requirement, 100% clean safe.
2. SUS 304 machine wash room and frame, resit Acid and Alkali corrosion, 10 years life time.
3. One-button mode of operation, high pressure clean + high pressure rinse + compressed air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine.
5. Solvent recycled to use and cost down.
6. The fixtures are clean and dry after cleaning, standby and ready for use.
7. Standard equipped with auto fill-in and drain-out function.
8. Labor cost save, clean efficiency raise
Machine Specification:
| Item | Parameter |
| Max fixture size | ￠1000*H460(mm) |
| Spray system | All round rotate spray clean and rinse |
| Filter system | 50/20/1um filter(3 levels) |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Spray pressure | 2-4kg |
| Air supply | 0.5-0.7Mpa |
| Machine weight | 480kgs |
| Machine size | 2100mm(L) x 1550mm(W) x 1600mm(H) |
Cleaning Basket:
Control System:
