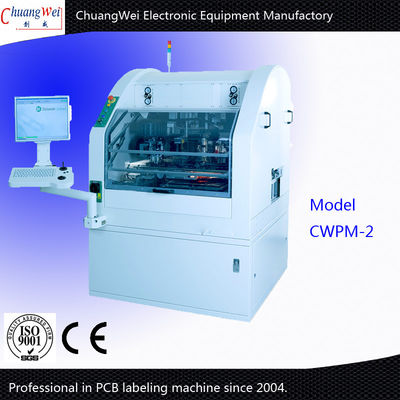

PCB Labeling Machine High Accuracy GUI Interface A5 Motor Series
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | each set be packed in plywood case |
| Delivery Period: | 1-3 days after payment confirm |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
label maker machine
,automatic labeler machine
PCB Labeling Machine High Accuracy GUI Interface A5 Motor Series:
|
CCD |
F‐130F series industrial camera |
|
lens |
Computar EX2C |
|
laser head |
import from japan |
|
guide rail |
TBI import grinding leadscrew X,Y two each,X450mm,Y520mm |
|
servo motor |
A5 motor series |
|
I/O control card |
ADLINK PCI‐9074 |
|
motion control card |
ADLINK PCI‐9074 |
|
adapter card |
BOXIN‐BO1 |
|
Static Eliminator |
STATIC‐ST401A series |
|
Industrial control host |
Industrial control host(RMC‐8404/6113LP4/300ATX/8651VNA/P4 |
|
Display |
DEL liquid crystal LCD17" displayer and Logitech mouse/Duble Swallow mouse |
|
2.software |
|
|
control system |
WINdowsxp |
|
operation interface |
GUI |
|
program |
online |
|
visual system |
Pixel computational precision CCD visual orientation correction system( |
|
control software |
F1.0.2 official |
|
Dimension |
600mm*600mm*1180mm |
|
weight |
100kg |
|
Foot adjustable height |
60～110mm |
|
Manipulator |
|
|
motor type |
Panasonic A5 motor series |
|
control motor repeat accuracy |
0.01mm |
|
The axis maximum working range |
400mm*400mm |
|
Work station |
|
|
transmitt |
Workbench automatic feeder,leadscrew transmission |
|
max size |
400mm*400mm |
|
edit mode |
online programming |
|
Program storage |
select the storage location According to the need |
|
collocate program CCD |
computar Series high pixel color CCD |
|
Operation Monitors |
|
|
tri‐color light |
High brightness trichromatic lamp monitoring machine of all kinds of |
|
The motor overheat detection |
Overheating, overload, low voltage protection function |
|
Servo overload detection |
With overload, circuit is normal and low voltage protection function |
|
print counter |
pcb type, print numbers,diverse counting way. |
|
Machine error record |
software automatic memory machine all alarm record |
|
Ⅲ.Accuracy |
|
|
Laser head position accuracy |
0.01mm |
|
print precision |
0.01mm |
|
Ⅳ.Safety |
|
|
scope of work protector |
Use all‐direction seal protection way |
|
door interlock protection sensors |
Before and after the safety door safety switch induction(optional) |
Brief description
Equipped with 15” LCD TFT Touch Screen Monitor
Wide PCB thickness allowable range of 0.5T ~ 2T
Core principle:
sensors detect the product after, back to the signal to the labeling control system, the signal after the PLC processing, at the appropriate time to send out the tag attached to the product set position, product flows through the device, tags coating is firm, a label attached
Automatic assembly implementation and processing
supply material method:
our factory supply label,three ways of pcb feeding:
(1)connect production line (2)loader/unloader machine (3)Manual
Labeling processing:
Screw Guide HWIN import linear Screw Guide
step 1. pick up labels according to points
Step 2. CCD correction Angle according to label position
step 3. label to the correct position
Our prodution flow
