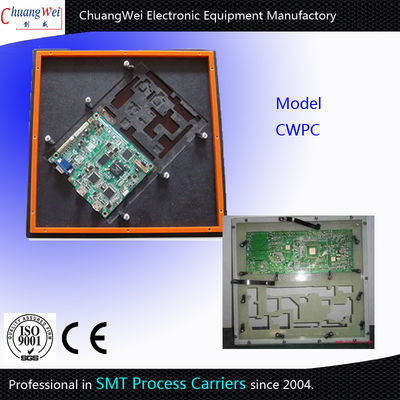

Wave Solder Pallet with Double Slots / Customize Dimension & Adjustable
  • name
  • name

Wave Solder Pallet with Double Slots / Customize Dimension & Adjustable

MOQ: 1 Set
Price: USD 2000-9999
Standard Packaging: each set be packed in plywood case
Delivery Period: 1-3 days after payment confirm
Payment Method: T/T L/C D/P Western Union
Supply Capacity: 3000 set per month
Details Information
Product Description
Detail Information
Place of Origin
Dongguan China
Brand Name
Chuangwei
Certification
CE ISO
Model Number
CWPC
Brand Name:
Chuangwei
Dimension:
1220x2440mm (can Be Customized)
Typically Color::
Blue/ Black/ Grey
Density(g/mm3):
1.85
Standard OperationTemperature:
260
Application::
Wave Soldering Process And PCB Assembly
Highlight:

Smt Trays

,

pcb carrier

Product Description

Wave Solder Pallet with Double Slots / Customize Dimension & Adjustable



Specifications


1. Eliminate the need for expensive hand masking
2. Reduce costly defects and rejects
3. Improve throughput by quality and volume

Description:

Chuangwei Engineering specializes in selective wave solder pallets. Designed by engineers with extensive wave solder experience, our pallets enable customers to automate the soldering of through-hole components on complex electronic assemblies.

 The pallets only expose areas of the assembly that require soldering. All other areas are protected, eliminating component damage and expensive, low quality process steps. Made of ESD-safe composite materials, these pallets are designed and manufactured to optimize both the solder ability of your circuit boards and your entire process flow.


Cost Effective
1). Eliminate hand soldering processes
2)  Eliminate high-defect, surface mount glue operations
3)  Eliminate temporary solder masking operations
4)  Reduce assembly cycle time
 5)  Use Fiberglass or Aluminum Stiffeners to avoid deforming.

Improves Quality
1) Improve component alignment and soldering
2) Improved solder fill and quality
3) Eliminates flooding problems

Increases your flexibility
1) Eliminates board size / panelization issues
2) Standardize on conveyor width
3) Effectively process complex, double-sided surface mount assemblies

Easy to Use
1) Designed by engineers with extensive wave solder experience
2) Optimized for easy profiling
3) Supports rapid set-up using our ergonomically designed fasteners
4) Optimized for best soldering
5) Wave solder automation to solder through-hole components on complex electronic assemblies.

 And we can design pallet for customers, if possible, please kindly advise me below information to design pallets as your requested..

a.       CAD machined drawing or 3D drawings (such as STP, STEP, IGS, IGES etc.) of wave solder pallets
b.       Gerber file of  PCB board(Bare)+Sample PCBA Board(Loaded)




Benefits



1. Wave Solder Pallets provide strong, stable support for the PCB throughout the wave solder process
2. Wave Solder Pallets permit wave solder processing of through-hole components while masking solder-side SMT components and critical board features from molten solder
3. Wave Solder Pallets provide thermal protection for printed circuit board areas that are heat sensitive
4. Wave Solder Pallets allow processing of odd-shaped PCB's through conveyor system
5. Wave Solder Pallets prevent topside component movement throughout wave solder
6. Wave Solder Pallets align and position topside components throughout wave solder
7. Wave Solder Pallets increase assembly production by eliminating hand gluing and masking operations
8. Wave Solder Pallets ensure higher quality, repeatable process results
9. Wave Solder Pallets reduce bridging and skipping solder defects
10. Wave Solder Pallets provide safe, easy, ergonomic handling of PCB


Specification:


Model DurostoneCHP760 DurostoneCAS761 DurostoneCAG762
Grade Standard Anti-Static Anti-static(Optical)
Colour Blue Black Grey
Density(g/mm3) 1.85 1.85 1.85
Standard OperationTemperature 260 260 260
Maximum Operation Temperature(C) 350 350 350
Sheet Size(mm) 2440×1220 2440×1220 2440×1220
Tickness/weight(mm/kg) 3/17, 4/22 5/28, 6/33, 8/44 10/55, 12/66



 Wave Solder Pallet with Double Slots / Customize Dimension & Adjustable 0







CE approval



Wave Solder Pallet with Double Slots / Customize Dimension & Adjustable 1

If you're in need of PCB pallet,please contact us:

Email: s5@smtfly.com

Wechat/Whatsapp: +86 136 8490 4990

Tags:

wave solder pallet,

PCB Soldering Pallet,

pcb Durostone pallet
