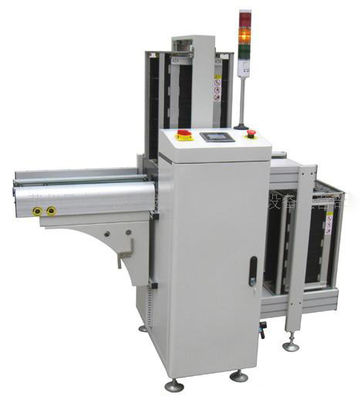

220V Fully Automatic PCB Unloader Fabrication Machine 7kg/Cm2
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | each set be packed in plywood case |
| Delivery Period: | 5-10 days after receive the payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
Detail Information
Place of Origin
China
Brand Name
SMTfly
Certification
CE
Model Number
SMTfly-U250
Dimension:
2440*726*1250mm
PCB Size:
330*(60‐250)mm
PCB Delivery Height:
900 +/‐ 20mm
PCB Rack Lifting Step Distance:
10,20,30,40,50mm
Material Specification:
355*320*565mm
Power Supply Single Phase:
220V,50/60Hz,100W
Air Pressure:
5~7kg/cm2
Net Weight:
200kg
Highlight:
PCB Unloader 220V
,7kg/cm2 PCB Unloader
,220V pcb fabrication machine
Product Description
Fully automatic PCB Unloader buffer stock customizable single/dual track
1. Main Features:
- Special aluminum alloy body, better to know the working status of magazines.
- Solid cast lift design improving the Stability.
- Panasonic PLC Control, multi‐function electrical circuits, and program design.
- User‐friendly Programming, 4 PITCH chooses, can set the step of receiving/sending PCB.
- Standard SMEMA Interface can be connected with other automation equipment.
- Using engineering plastic flat strip for magazine’s transmission.
- PCB transmission Speed Adjustable.
- Three‐point positioning, up‐down pneumatic clamping to ensure accurate location of magazines.
- Pushing Protection System ensures the PCB will not be damaged.
2. PCB Unloader Specification: SMTfly-U250
| Dimension | 2440*726*1250mm |
| PCB size | 330*(60‐250)mm |
| PCB delivery height | 900 +/‐ 20mm |
| PCB rack lifting step distance | 10,20,30,40,,50mm |
| Material specification | 355*320*565mm |
| Power supply Single phase | 220V,50/60Hz,100W |
| Air pressure | 5~7kg/cm2 |
| Net weight | (about)220kg |
Unloader
Customizable track(Dual track)
