W350mm SMEMA Automatic Chip Conveyor For Cnc Machine / SMT Assembly Line
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | each set be packed in plywood case |
| Delivery Period: | 5-10 days after receive the payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
Detail Information
Place of Origin
China
Brand Name
SMTfly
Certification
CE ISO
Model Number
SMTfly-FL
Name:
Pcb Flipper High Quality Pcb Turn Conveyor
Conveyor Height:
900±20
Interface:
SMEMA
Wide:
350mm, 460mm
Diameter:
3mm
Direction:
Left To Right Or Right To Left (optional)
Certificates:
CE
Material:
All Metal Solid Design
Highlight:
W350mm smt assembly line
,SMEMA smt assembly line
,Chip Conveyor For Cnc Machine
Product Description

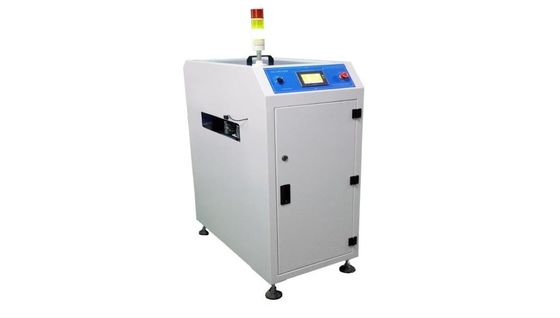

SMT Assembly Line Automatic PCB Flipper PCB High Quality Turn Conveyor
This PCB Inverter is used for inverting the PCBs to process the board at both sides without manual handling.
This unit flips the PCBs for double-sided assembly.
Features
‣ Touch screen (OP Panel) + Controlled by PLC
‣ SMEMA interface
‣ PCB Inverter and bypass function selectable
‣ Buffer reducer design
‣ All metal solid design
‣ 3-colors light tower and audible alarm
‣ Available in 350mm, 460mm wide
‣ Diameter 3mm edge round belt
‣ Self-diagnostic error code display
‣ ESD window on top
‣ Direction from left to right or right to left (optional)
‣ CE certificates
‣ Ethernet ability and RS-485 (optional)
| Size | L | XL |
| Model | SMTfly-FL350 | SMTfly-FL460 |
| PCB size (mm) | 400mm x (50 – 350) mm | 500mm x (50 – 460) mm |
| Conveyor height | 900mm ± 20mm | |
