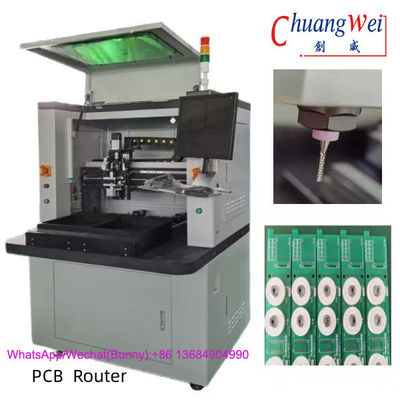

4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 1000 set/ year |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CW-F01-S
Warranty:
1 Year
Vacuum Cleaner:
Yes
Routing Bit Checking:
Yes
Power:
220V, 4.2KW
Weight:
650kgs
Name:
PCB Depanelizer
Highlight:
4.2KW PCB Depaneling Machine
,4.2KW pcb depaneling router
,Automated PCB Depaneling Machine
Product Description
Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot
Manufacturer: ChuangWei
Condition: NEW.
It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.
Included:
- (1) Router Machine
- (1) Power Transformer
- (1) Vacuum cleaner
- (1) Dust collector
- (1) User's Guide
- (2) Keys
Specifications:
- Manufacturer: ChuangWei
- Model: CW-F01-S
- Deigned for depaneling Printed Circuit Boards and PCB panels
- For high volume and low mix production runs
- PCB sizes: 50x50mm to 650*500mm, 3mm thick max.
- Stress-free breakout and safe board handling without compromising panels
- Dust collection built-in
- Panels enter on conveyor, Servo-driven router under board runs automatically
- Gripping fingers remove routed boards to a pallet on an outfeed conveyor
- Controlled by Windows PC in machine's base
- May be programmed to carry out prehandlings and checks using tools, manipulators, and Vision system
- Pick & Place gantry travel: X (manually adjustable), Y 725mm, Z 75mm (pneumatic), w (manually adjustable)
- Router speed: 1500mm/s slew, 75mm/s routing
- Automatic broken bit detection
- SMEMA transfer protocol
- Camera aided teaching system
- Tool life and vacuum bag tracking
