Robust Frame Depaneling Machine Pcb Circuit Board Depaneling Machine Motor Driving
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3-5 days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 10/week |

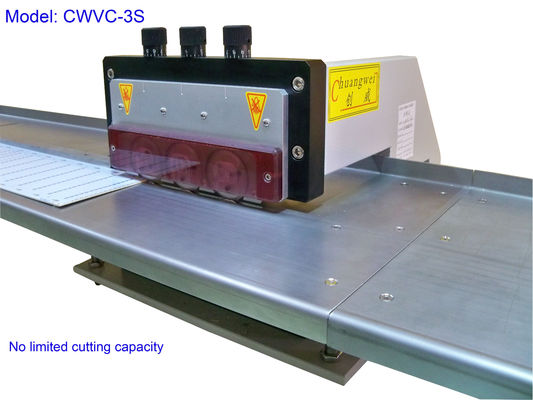

Robust Frame Depaneling Machine Pcb
,Robust Frame Circuit Board Depaneling Machine
,Motor Driving Depaneling Machine Pcb
PCB cutting Machine For LED PCB's With No Limited Cutting Capactity
Specifications
1. V-cut PCB Electrostatic Separator
2. PCB 0.8 to 3.5mm
3. Long platform should be customized
4. PCB length unlimited
5. cut speed 0 to 400mm/s
| Max PCB length | no limit |
| PCB Thickness | 0.8 to 3.5 mm |
| Working Speed0 | 0 to 400mm/s |
| Voltage | 220VAC |
| House color | white |
| Machine Weight | 40kg |
Features:
1.Three pairs of precision beveled cutting blades can ensure the board does not bend, or deform
2.Guide can be adjusted vertically to suit differenct LED boards
3.Depth between upper circular blades can be precisely adjusted to reduce stress on score-line edge and blade wear
4.Blades are motor driven (110 or 220 volt)
5.Upper and lower circular blades can be resharpened
6.2.4M stainless steel platform is standard; optional lengths avaiable
Applications:
Replacement of blades:
1.Loosen screws of shell
2.Remove the plastic shell as following picture
3.Loosen 4 screws of blade
4.Remove the metal plate as followings:
5.Remove the old blade and replace a new one
