Circle Blades PCB Depanelers Cutting LED Panel with FR4 & Aluminum Materials,PCB Cutter

Circle Blades PCB Depanelers Cutting LED Panel with FR4 & Aluminum Materials

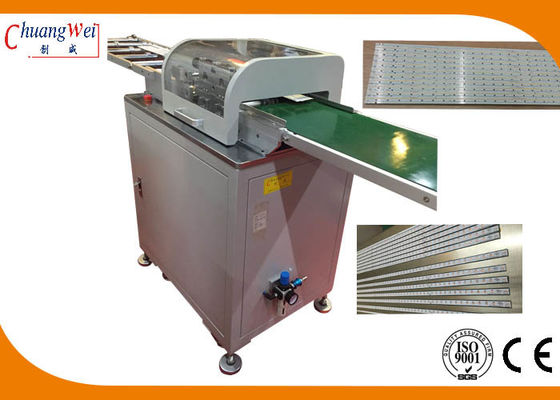

This is LED multi group multi blade cutting machine CWVC-5 . It is an automated equipment and it can butt joint your production line equipment . It can cut all kind of board . 10 pcbs in one panel ,19 pieces blade can cut without any problem .


Specification:

Aplication:

LED panel ,fiberboard , aluminum plate ,aluminum substrate ,copper substrate ,fr4, glass fiber board

Features of machine:

1) The machine adopts the computer screen control with a counting device , which you can use to preset the processing production . And the space of cutting tool is visible on the screen .

2)  It can cut many boards with multiple sets of knives work at the same time

3)  The knife flywheel is adjustable as a whole from 0 to 5mm

4)  The distance between knives is regulable as well , applying to pcb with width from 15mm to 20mm .

5)  The blade is made of imported high speed steel material , which is durable and have a long service life 6)  It is convenient to adjust the cutting speed through rotary knob .

7)  No limits of the cutting length .

8)  Thickness range of pcb : 0.2-5.0mm

9)  With a conveyor belt line , the separated pcb can be send out directly to reduce pick- and-place .

10) The machine adopts multiple blade to separate boards with simple operation and high efficiency , fitted for batch production.

Customize Circle Blades PCB Depanelers Cutting LED Panel with FR4 & Aluminum Materials
