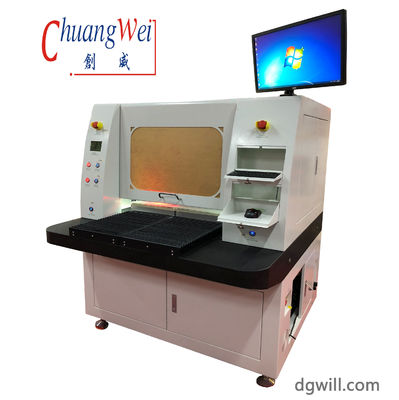

UV PCB Separator Machine 10W 355nm Wavelength With High Precision
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 50 sets per month |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CWVC-5S
Color:
White
Laser Power:
10W(optional)
Type:
UV
Working Size:
450*430 Mm
Size:
1480mm*1360mm *1412 Mm
Precision:
±20 μm
Laser Brand:
USA Or Germany
Laser Wavelength:
355nm
Laser Scanning Speed:
2500mm/s (max)
Product:
PCB Laser Cutting Machine
Highlight:
UV PCB Separator Machine
,UV PCB Laser Depaneling Machine
,10W PCB Separator Machine
Product Description
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards Laser PCB Separator Advantages
- The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
- In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
- The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
- The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
- The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.
Laser PCB Separator Machine Principle
Laser PCB Separator Parameter
| Parameter | ||
Technical parameters | Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of machine | 1500Kg | |
| Power | AC220 V | |
| Laser | 355 nm | |
| Laser |
Optowave 10W(US) | |
| Material | ≤1.2 mm | |
| Precisio | ±20 μm | |
| Platfor | ±2 μm | |
| Platform | ±2 μm | |
| Working area | 450*430 mm | |
| Maximum | 3 KW | |
| Vibrating | CTI(US) | |
| Power | AC220 V | |
| Diameter | 20±5 μm | |
| Ambient | 20±2 ℃ | |
| Ambient | ＜60 % | |
| The Machine | Marble | |
Laser PCB Separator Features
1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed.
Product Photos
Our Service
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# 1 year warranty
