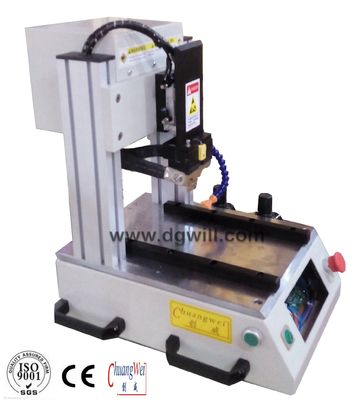

High Precision Hot Bar Soldering Machine Bonding For FPC To PCB Board
| MOQ: | 1 set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywood case |
| Delivery Period: | 3-7 working days after payment receipt |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 50sets per month |
pcb welding machine
,pcb soldering machine
High Precision Hot Bar Soldering Machine Bonding For FPC To PCB Board
Soldering Machine Specfification :
| Size | 590 x 640 x 620 mm |
| max.working area | 200 x 260 pa |
| Working air pressure | 0.45 x 0.70pa |
| Fixture | 1 set |
| Weight | 62 kg |
Features for soldering machine :
1 . Unique pulse heat technology provides fastest soldering head heating.
2 . Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3 . Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4 . Closed Loop PID temperature control with clearly visible LED display.
5 . Soldering time can be programmable and is triggered by temperature.
6 . Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7 . Programmable pressure switch with LCD display for precise force control.
8 . CCD camera system with magnification lens can be retrofitted for finepitch positioning.
