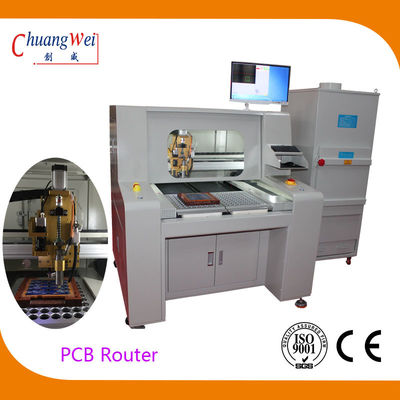

PCB Depaneling Router Two Work Tables PCB Depanelizer Machine
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 1-3 days after payment confirm |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CW-F04
Color:
White
Vacuum Cleaner:
Upper Or Lower(optional)
Routing Bit:
0.8/1.2/1.5/1.8/2.0mm
PCB Size:
450*350mm
PCB Material:
FR1, FR4, MCPCB
Description:
PCB Router
Highlight:
1.2mm PCB Router
,Stress Free PCB Depanelizer
,Two Work Tables PCB Depanelizer
Product Description
Stress Free Depanelization PCB Router with Automatic Alignment Compensation,CW-F04 Key Features
- Solution for stress free depanelization
- Fixture-based highly efficient dust vacuum system
- Clean and precise depanelization for densely populated PCBs
- Advanced image-processing software offers point-and-click operation for programming router paths
- Automatic alignment compensation by CCD camera
- User-friendly operation
- Extended bit life by automatic router bit depth adjustment
- Improved tact time
- Low maintenance required
- Reasonable price
- Calibration free linear robot
Specification:
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
