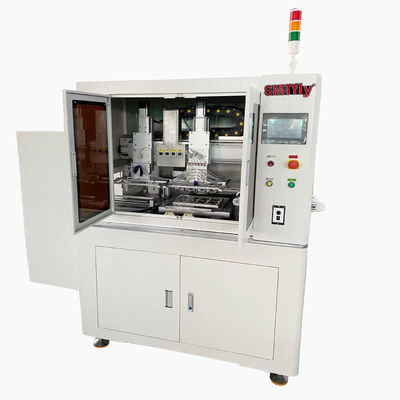

PCB Separator Machine Fully Automatic Inline V-Cut 0.8mpa
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | USD 2000-9999 |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | USD 2000-9999 |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
USD 2000-9999
PCB Width:
300mm(could Be Customized)
Driven Mode:
Stepping / Servo Motor(optional)
V-cut Angel:
>40°
Cutting Speed:
300-500/s
Blade Material:
High Speed Steel
Air Pressure:
0.5-0.8Mpa
Voltage:
220/110V
Packaging Weight:
300kgs
Highlight:
inline pcb separator machine
,0.8mpa pcb separator machine
Product Description
Fully Automatic Inline V-Cut Pcb Separator Machine Description:
- This is a double direction depaneling with horizontal and vertical boards;
- To realize inline depaneling for shape panels at one time;
- High automation, connecting PCB loader and unloader, can be achieved without humans, save labor;
- Touch screen operation, enabling quick product changing, PLC data storage capacity is 100 programs;
- One direction of depaneling is also workable, one could set horizontal and vertical depaneling by touch screen, more intelligent;
- Dust cleaner is optional.
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Parameter:
| Blade dimension |
Linear Blade: 356×43.5×6mm |
| PCB width | 300mm(could be customized) |
| Driven mode | Stepping / Servo motor(optional) |
| V-cut angel | >40° |
| Cutting speed | 300-500/s |
| Blade material | High-speed steel |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 220/110V |
| Dimension | 1250(1560)mm×800mm×1295mm |
| Packaging weight | 300kgs |
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Features:
※ Workable for "#" shape depaneling.
※ Blade set can be quickly changed.
※ Could connect PCB loader and PCB unloader to realize fully automated production to
save labor.
※ Unique new blade design, lifetime should be increased by 1.5-2 times.
※ Safety: Sensor is used to ensure safe production.
※ Simple operation, workers can operate it after training.
※ Horizontal and vertical depaneling is optional.
