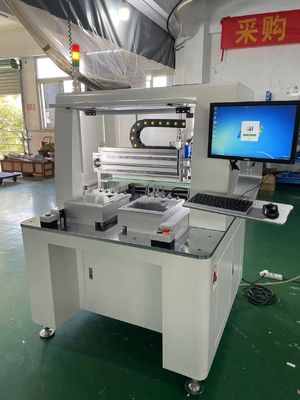

4.2KW Pcb Depaneling Router Machine PCB Router Cutter Customized High Precision
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5-7 days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
4.2KW Pcb Depaneling Router Machine
,4.2KW PCB Router Cutter
,Customized Pcb Depaneling Router Machine
PCB Router Depanelizer with 2 Way Sliding Working Exchanger
Why select ChuangWei as your depaneling vendor?
1. More choices of machines for scored or routed boards
2. More factory support after purchase
3. Quick turnaround on blade re-sharpening
4. Engineered solutions to challenging applications
Features
1. Manual loading/unloading processing
2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.
3. Friendly touch panel with 10X CCD camera to minimize the time of programming
4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy
5. Auto router bit check to prevent the bit break incomplete cutting.
Specification
| Model | CW-F01 |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Information we need to help you for prescored boards
1. Panel thickness________
2. Overall size of panel________________
3. How many boards per panel__________
4. Daily production requirements in panels___________
5. My primary objective is:
a. Just starting to singulate panels_____
b. Need to upgrade our depaneling_____
c. Need to increase throughput________
d. Reduce or eliminate stress to prevent damage to components____
e. Other__________________________________________________
**If a sample, photo or drawing of your application is available, ChuangWei will make recommendations on machine type along with feedback
