Automatic Routing Machine Pcb Dustproof With 320*320mm Working Area
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5-7 days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CW-F01-S
Work Area:
320*320mm
Table:
2
Warranty:
One Year
PCB Thickness:
0.5-3.5mm
Spindle Speed:
60000RPM
Description:
PCB Router Separator
Highlight:
Automatic Routing Machine Pcb
,Automatic PCB Router Separator Machine
,Dustproof Routing Machine Pcb
Product Description
Inline PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board
60000RPM PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board Inline
Features:
1. Splitting machine can be automatically docked to the production line, saving labor costs
2. Mark point automatic alignment, intelligent correction error
3. Broken knife and sliding knife monitoring, to ensure the normal use of tools
4. Automatic tool change, no need for manual tool change.
5. Followed by dust removal, the dust removal effect is good.
Specification:
| Specification | |
| X Y Z Stroke:450*600*60mm | Into the board direction: left into the right out |
| Depanel thickness:0-5mm | Cutting range:330mm*330mm |
| Cutting speed:0~100mm/s adjustable | Machine Size: L1800*D1100*H1600 |
| Cutting shapes: straight, L-shaped, square, round, curved | Machine Weight:about900KG |
| Spindle motor: German high-speed motor | Host Control: Advantech Industrial Computer |
| Static electricity elimination: SMC Ion Generator | Servo system: Fuji servo |
| position accuracy:±0.01mm | Input Power: AC220V/50Hz |
| Screws/Guides: HIWIN/THK | Air consumption:10N1/Min |
| Track width adjustment: automatic track adjustment | Inlet plate thickness:0.6mm-5mm |

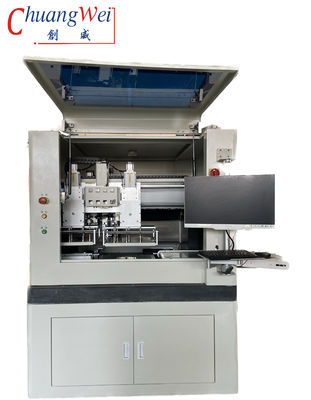

Inline PCB Router Detailed Photos:
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Whatsapp(Donna): +86 15273473462
