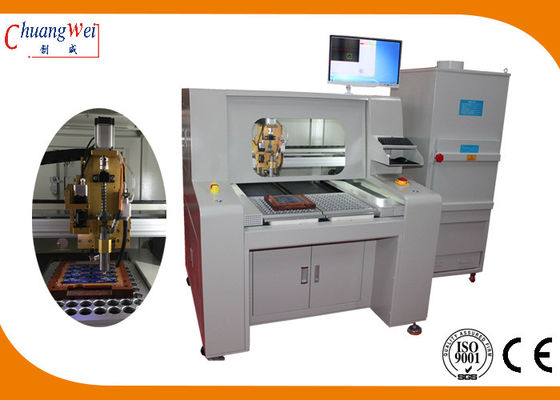

Low Maintenance PCB Automatic Router Machine Accurate With High Resolution CCD Video Camera
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5-7 days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
Low Maintenance PCB Automatic Router Machine
,Accurate PCB Automatic Router Machine
,Accurate PCB Routing Machine
Low Maintenance PCB Automatic Router Machine High Resolution CCD Video Camera Features:
1. X10 zoom-in image makes programming easier&increase the accuracy of point setting.
2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better
productivity.
3. AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce
unnecessary mistake before cutting.
4. Has routing bit life time checking and alarm system to remind operator to change routing bits
when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second
milling point, the last 2mm cut the third milling point to increase its life time
5. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting
Specification:
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
