Excellent Toughness PCB cutting machine Protect Electronic Component
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5 days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 1000 Sets/Year |
PCB Cutting Shear
,pcb depaneling machine

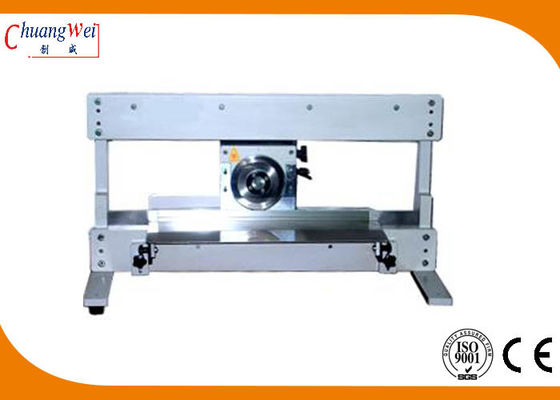

Excellent Toughness PCB cutting machine Protect Electronic Component
Chuangwei Machine Diagram:
Factory made pcb depaneler protect electronic component
1.PCB Protection
2.Calibration Blade Setting
3.All Speed Control By Human
4.More Accurating
Specification:
|
Model |
CWV-1M |
|
PCB Cutting Length (mm) |
460/700/1000/1500 |
|
Cutting Speed (mm/s) |
manual |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Size (mm) |
400*780*480 |
|
Weight (Kg) |
55 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade Hardness (HB) |
540~567 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:
1.Round knife, manually cutting against lower linear knife, for reduced stress
2.Separate pre-scored PCB assembly without stress on either PCB or component
3.One touch programming of cut length with digital display
4.Separating speed is adjusted by a rotary knob
5.Handle Intermittent scoring or cut-outs
6.Board with projected component can be cut precisely
7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8.Optional PCB conveyor belt to remove finished board
9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years
experience,equipment quality will be satisfying.
