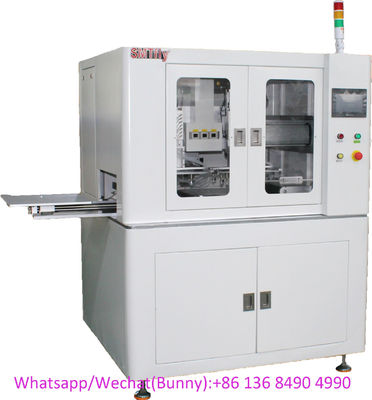

Inline PCB Depaneling Machine 0.8Mpa Fully Automatic V Cut
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 8-15 days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 30sets/month |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
SMTfly-5
PCB Width:
300mm(could Be Customized)
Driven Mode:
Stepping / Servo Motor(optional)
V-cut Angel:
>40°
Cutting Speed:
300-500/s
Blade Material:
High Speed Steel
Air Pressure:
0.5-0.8Mpa
Voltage:
220/110V
Packaging Weight:
300kgs
Highlight:
Inline PCB Depaneling Machine
,Automatic V Cut Depaneling Machine
,PCB Depaneling Machine 0.8 Mpa
Product Description
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Description:
This is a double directions depaneling with horizontal and vertical boards;
to realize inline depaneling for shape panels at one time;
High automation, connect PCB loader and unloader, can be achieved without human, save
labor.
Touch screen operation, enabling quick product changing, PLC data storage
capacity is 100 programs.
One direction of depaneling is also workable, could set horizontal and vertical depaneling by
touch screen, more intelligent.
Dust cleaner is optional.
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Parameter:
| Blade dimension |
Linear Blade: 356×43.5×6mm |
| PCB width | 300mm(could be customized) |
| Driven mode | Stepping / Servo motor(optional) |
| V-cut angel | >40° |
| Cutting speed | 300-500/s |
| Blade material | High speed steel |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 220/110V |
| Dimension | 1250(1560)mm×800mm×1295mm |
| Packaging weight | 300kgs |
More information or the machine's working video,welcome to contact us:
Email: sales@dgwill.com
Wechat/Whatsapp(Bunny):+86 136 8490 4990
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Features:
※ Workable for "#" shape depaneling.
※ Horizontal and vertical depaneling is optional.
※ Blade set can be quickly changed.
※ Could connect PCB loader and PCB unloader to realize fully automated production to
save labor.
※ Simple operation, workers can operate it after training.
※ Unique new blade design, lifetime should be increased by 1.5-2 times.
※ Safety: Sensor is used to ensure safe production.
