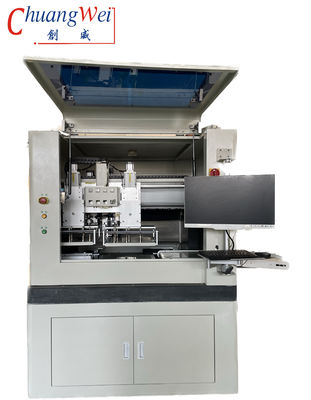

Intelligent PCB Router Machine High Performance With Double Station
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 5-7 days after payment |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 300 sets per month |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CW-F01
Work Area:
320*320mm
Table:
2
Warranty:
One Year
PCB Thickness:
0.5-3.5mm
Spindle Speed:
60000RPM
Description:
PCB Router Separator
Highlight:
Intelligent automated pcb Router machine
,High Performance PCB Router Machine
,High Performance automated pcb Router machine
Product Description
In Line PCB Router Machine 0.5mm Thickness CNC Spindle Printed Circuit Board 60000rpm
Features:
1.Splitting machine can be automatically docked to the production line, saving labor costs
2.Mark point automatic alignment, intelligent correction error
3. Broken knife and sliding knife monitoring, to ensure the normal use of tools
4. Automatic tool change, no need for manual tool change.
5.Followed by dust removal, dust removal effect is good.
Speicification:
| Specification | |
| X Y Z Stroke:450*600*60mm | Into the board direction: left into the right out |
| Depanel thickness:0-5mm | Cutting range:330mm*330mm |
| Cutting speed:0~100mm/s adjustable | Machine Size :L1800*D1100*H1600 |
| Cutting shapes: straight, L-shaped, square, round, curved | Machine Weight :约900KG |
| Spindle motor: German high-speed motor | Host Control: Advantech Industrial Computer |
| Static electricity elimination: SMC Ion Generator | Servo system: Fuji servo |
| position accuracy:±0.01mm | Input Power :AC220V/50Hz |
| Screws/Guides:HIWIN/THK | 空气消耗:10N1/Min |
| Track width adjustment: automatic track adjustment | Inlet plate thickness :0.6mm-5mm |
In Line PCB Router Detailed Photoes:
PCB Depanel Router Fixture:
More information welcome to contact us:
Email: sales@dgwill.com
Skype/Wechat : 181-6614-6357
