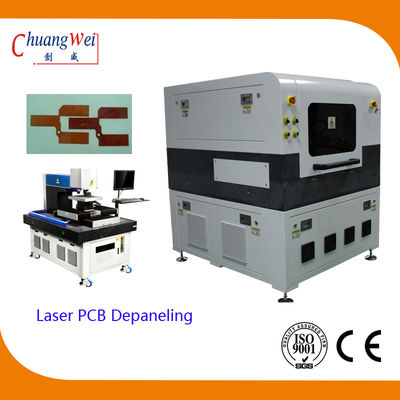

355nm Laser Depaneling Machine PCB UV Cutting Machine For Electronics
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 1000 set / year |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CWVC-5L
Max PCB Size:
600*460mm
Weight:
1600kgs
Laser:
USA Optowave
Cooling:
Water
Name:
Laser UV Cutting Machine
Highlight:
355nm Laser Depaneling Machine
,355nm PCB UV Cutting Machine
,Laser Depaneling Machine For Electronics
Product Description
Printed Circuit Board PCB Depaneling Laser UV Cutting Machine
The demand for small, hand-held electronics with more features is driving smaller, thinner, and more dense flex and rigid printed circuit boards (PCBs).
Depaneling, or the laser singulation of printed circuit boards, offers numerous advantages to a traditional bit router or mechanical saw, including:
- Non-contact cutting process to eliminate stress to the PCB and its delicate components
- Reduced micro-cracks and reduced delamination for longer PCB life
- Greater flexibility to cut unusual shapes
- Faster set up for smaller production batches
- More consistent laser accuracy over the life of the tool
- Narrower cuts and less dust generated during the laser singulation process
- Fewer burrs
Specification
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/18W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 400mmX300mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
High Effective Laser Source
