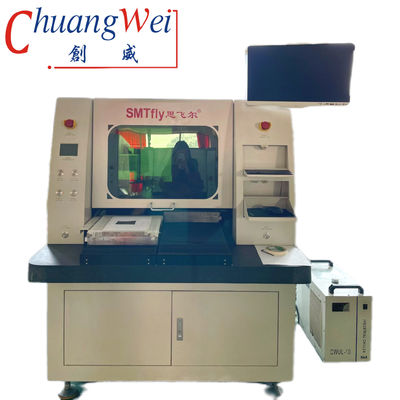

10W/15W Laser PCB Depaneling Separator 0.02 Precision 335mm Advanced
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 800 sets per year |
15W Laser PCB Depaneling Separator
,15W Laser PCB Depanelizer
,Advanced Laser PCB Depaneling Separator
PCB Laser Depaneling Separator 0.02 Precision 335mm
Features:
Neat and smooth edge, no burr or overflow.
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength: 355nm
Rated power: 10W/15W@30KHz
Galvanometer working field Per One Process: 30 × 30mm
Power consumption for the hole machine: 2KW
FPC and some relative materials;
FPC/PCB/ Rigid‐Flex PCB cutting, Camera module cutting;
| Specification | |
| Cutting accuracy of the whole machine: 0.03mm | humidity: ＜60% |
| size of processed products: 330*330mm/330*670 | floor loading: 1500kgf/m2 |
| moving speed of the platform:300mm/s | human-computer operation and data storage:industrial computer |
| processing speed of the vibration mirror: ≤50000mm/s | size of the host computer: 1250*1300*1600 (L X H X D)mm |
| minimum processing line width : 0.002mm | Machine Weight: 1500 Kg |
| positioning accuracy of the platform: 0.003mm | Equipment Source: AC220/3KW |
| operation interface: Chinese/English interface | operating system: Windows7 |
| repeatability of the platform: 0.003mm | processing picture file: Gerber或DXF |
| size of the dust collector: 500*650*900 (L X H X D)mm | compensation for shrinkage and expansion: Automatic compensation of MARK points |
| ambient temperature: 20±2℃ | dust collector: 1.5KW |
| power supply of the dust collector: AC 220V 50/60Hz | dust collector weight: 85Kg |
Our Service:
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
