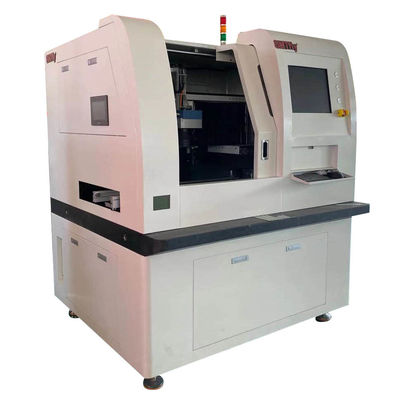

Versatile Laser Depaneling Machine 1480*1360*1412mm UV Laser Cutting Equipment Low Maintenance
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 800 sets per year |
Versatile Laser Depaneling Machine
,Versatile UV Laser Cutting Equipment
,Low Maintenance Laser Depaneling Machine
Inline laser PCB Depanel Machine Optional Inline or Offline
Advantages of Laser PCB depaneling/singulation
- No mechanical stress on substrates or circuits
- No tooling cost or consumables.
- Versatility – the ability to change applications by simply changing settings
- Fiducial Recognition – more precise and clean-cut
- Optical Recognition before the PCB depaneling/singulation process begins.
- Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
- Extraordinary cut quality holding tolerances as small as < 50 microns.
- No design limitation – the ability to cut virtually any size PCB board including complex contours and multidimensional boards
Specification:
|
Specification |
|
|
Cutting accuracy of the whole machine: 0.02mm |
humidity: ＜60% |
|
size of processed products: 330*330mm/330*670 |
floor loading: 1500kgf/m2 |
|
moving speed of the platform:300mm/s |
human-computer operation and data storage: industrial computer |
|
processing speed of the vibration mirror: ≤50000mm/s |
size of the host computer: 1250*1300*1600 (L X H X D)mm |
|
minimum processing line width: 0.0015mm |
Machine Weight: 1500 Kg |
|
positioning accuracy of the platform: 0.002mm |
Equipment Source: AC220/3KW |
|
operation interface: Chinese/English interface |
operating system: Windows7 |
|
repeatability of the platform: 0.002mm |
processing picture file: Gerber或DXF |
|
size of the dust collector: 500*650*900 (L X H X D)mm |
compensation for shrinkage and expansion: Automatic compensation of MARK points |
|
ambient temperature: 20±2℃ |
dust collector: 1.5KW |
|
the power supply of the dust collector: AC 220V 50/60Hz |
dust collector weight: 85Kg |
