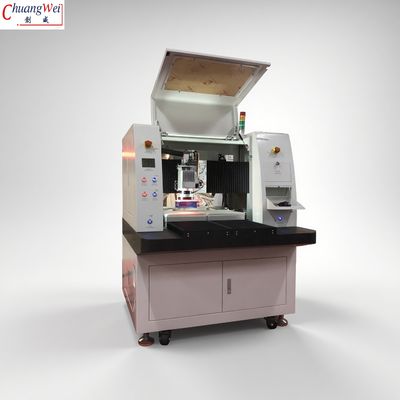

15W PCB Depanelizer Machine High Precision Circuit Board Depaneling Machine
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 800 sets per year |
Detail Information
Place of Origin
China
Brand Name
ChuangWei
Certification
CE Certification
Model Number
CWLS-330
Colour:
White
Laser Head:
Solid-state UV Lasers
Power Rate:
10/15W
PCB Material:
FPC, FR4
Working Area:
300*300mm
Name:
PCB Laser Cutting Machine
Highlight:
15W PCB Depanelizer Machine
,15W Circuit Board Depaneling Machine
,PCB Depanelizer Machine
Product Description
15W Laser PCB Depaneling Machine Dual Table Solid State UV Lasers Machine Offline
Product Specifications
| Attribute | Value |
|---|---|
| Colour | White |
| Laser head | Solid-state UV lasers |
| Power rate | 10/15W |
| PCB material | FPC, FR4 |
| Working area | 300*300mm |
None Touch Depaneling Solution Dual Table PCB Laser Cutting Machine
This laser PCB depaneling machine features solid-state UV lasers for offline operation, delivering high-precision cutting for various PCB materials.
Key Features
- High-precision: Low-drift galvanometer with fast ironless linear motor system maintains micrometer-level accuracy
- User-friendly: Self-developed Windows control system with intuitive Chinese/English interface
- Automated operation: High-precision CCD for automatic locating and focusing, eliminating manual intervention
- Versatile cutting: Suitable for FPC, PCB, chip cutting, and cell phone camera modules with clean, burr-free edges
- Premium laser: International brand solid-state UV lasers with excellent beam quality and focused spot
Technical Parameters
| Parameter | Value |
|---|---|
| Machine dimensions | 1480mm * 1360mm * 1412mm |
| Weight | 1500Kg |
| Power | AC220V |
| Laser wavelength | 355nm |
| Material thickness | ≤1.2mm |
| Precision | ±20μm |
| Working area | 600*450mm |
| Laser spot diameter | 20±5μm |
Key Advantages
- High-precision CCD automatic positioning and focusing system
- Intuitive interface with simple operation
- Compact design saves valuable floor space
- Energy efficient operation reduces costs
- Fast cutting speed with stable performance
Applications
- FPC/PCB/Rigid-Flex PCB cutting
- Camera module cutting
- Various relative materials processing
