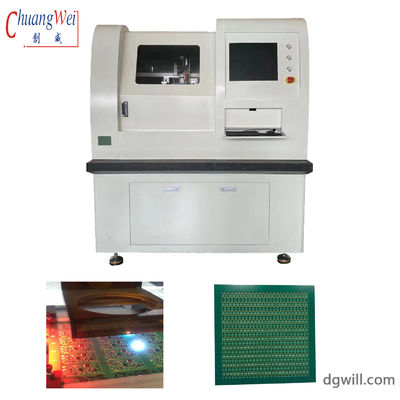

Stainless Steel UV Laser Cutting Machine 110V Circuit Board Depaneling Machine
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 800 sets per year |
Stainless Steel UV Laser Cutting Machine
,Stainless Steel Circuit Board Depaneling Machine
,110V UV Laser Cutting Machine
Stainless Steel Inline 17W Laser PCB Depaneling Machine Optional
Inline laser PCB Depanel Machine Optional Inline or Offline
Laser PCB Depaneling Machine Optional Stainless Steel Inline
Advantages of Laser PCB depaneling/singulation
- No tooling cost or consumables.
- No mechanical stress on substrates or circuits
- Fiducial Recognition – more precise and clean-cut
- Extraordinary cut quality holding tolerances as small as < 50 microns.
- Versatility – the ability to change applications by simply changing settings
- Optical Recognition before the PCB depaneling/singulation process begins.
- Ability to depanel virtually any substrate. (Rogers, FR4, Chema, Teflon, ceramics, aluminum, brass, copper, etc)
- No design limitation – the ability to cut virtually any size PCB board including complex contours and multidimensional boards
Specification:
|
Specification |
|
|
Cutting accuracy of the whole machine: 0.02mm |
humidity: ＜60% |
|
size of processed products: 330*330mm/330*670 |
floor loading: 1500kgf/m2 |
|
moving speed of the platform:300mm/s |
human-computer operation and data storage: industrial computer |
|
processing speed of the vibration mirror: ≤50000mm/s |
size of the host computer: 1250*1300*1600 (L X H X D)mm |
|
minimum processing line width: 0.0015mm |
Machine Weight: 1500 Kg |
|
positioning accuracy of the platform: 0.002mm |
Equipment Source: AC220/3KW |
|
operation interface: Chinese/English interface |
operating system: Windows7 |
|
repeatability of the platform: 0.002mm |
processing picture file: Gerber DXF |
|
size of the dust collector: 500*650*900 (L X H X D)mm |
compensation for shrinkage and expansion: Automatic compensation of MARK points |
|
ambient temperature: 20±2℃ |
dust collector: 1.5KW |
|
the power supply of the dust collector: AC 220V 50/60Hz |
dust collector weight: 85Kg |
