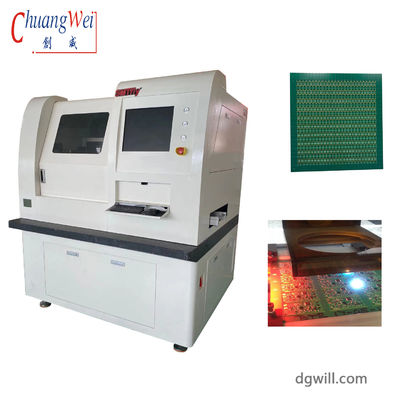

Stainless Steel Laser Depaneling Machine 3KW With 0.002mm Positioning Accuracy
| MOQ: | 1 Set |
| Price: | USD 2000-9999 |
| Standard Packaging: | plywooden case |
| Delivery Period: | 3 work days |
| Payment Method: | T/T L/C D/P Western Union |
| Supply Capacity: | 800 sets per year |
Stainless Steel Laser Depaneling Machine
,3KW Laser Depaneling Machine
,3KW smt depaneling machine
In Line laser PCB Depanel Machine Optional Inline or Offline
Advantages of Laser PCB depaneling/singulation
- No mechanical stress on substrates or circuits
- No tooling cost or consumables.
- Versatility – ability to change applications by simply changing settings
- Fiducial Recognition – more precise and clean cut
- Optical Recognition before PCB depaneling/singulation process begins.
- Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
- Extraordinary cut quality holding tolerances as small as < 50 microns.
- No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards
Specification:
|
Specification |
|
|
Cutting accuracy of the whole machine: 0.02mm |
humidity: ＜60% |
|
size of processed products: 330*330mm/330*670 |
floor loading: 1500kgf/m2 |
|
moving speed of the platform:300mm/s |
human-computer operation and data storage:industrial computer |
|
processing speed of the vibration mirror: ≤50000mm/s |
size of the host computer: 1250*1300*1600 (L X H X D)mm |
|
minimum processing line width : 0.0015mm |
Machine Weight: 1500 Kg |
|
positioning accuracy of the platform: 0.002mm |
Equipment Source: AC220/3KW |
|
operation interface: Chinese/English interface |
operating system: Windows7 |
|
repeatability of the platform: 0.002mm |
processing picture file: Gerber或DXF |
|
size of the dust collector: 500*650*900 (L X H X D)mm |
compensation for shrinkage and expansion: Automatic compensation of MARK points |
|
ambient temperature: 20±2℃ |
dust collector: 1.5KW |
|
power supply of the dust collector: AC 220V 50/60Hz |
dust collector weight: 85Kg |
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
